Thermolite™ Glazing Panels

When you need a high-tech look with energy-saving, insulating properties for glazing inserts, Thermolite panels are the answer.

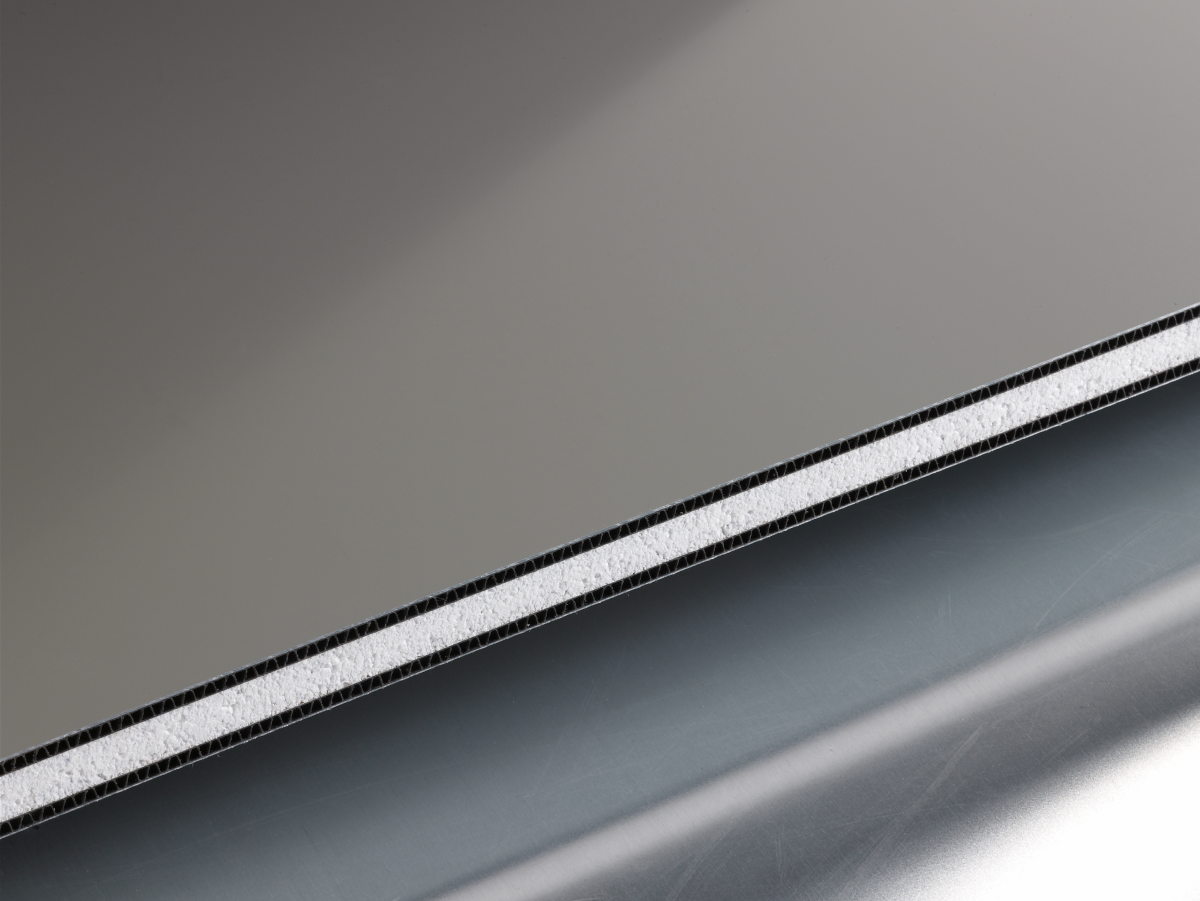

Thermolite panels are constructed with an insulating foam core sandwiched between two corrugated, stabilizers and finished aluminum sheets.

Available in smooth or stucco-embossed finishes in a variety of durable colors, Thermolite panels add a highly decorative and durable surface with excellent insulating properties.

APPLICATIONS

Curtain walls, Opaque glazing, Butt glazing, In-fill panels, Window systems, Window replacement, Storefronts, Spandrels, Partitions, Sunrooms, Grow rooms, Commercial door systems

PORTFOLIO

View Projects Using Thermolite™ Glazing Panels

VIDEOS

Thermolite™ Glazing Panels

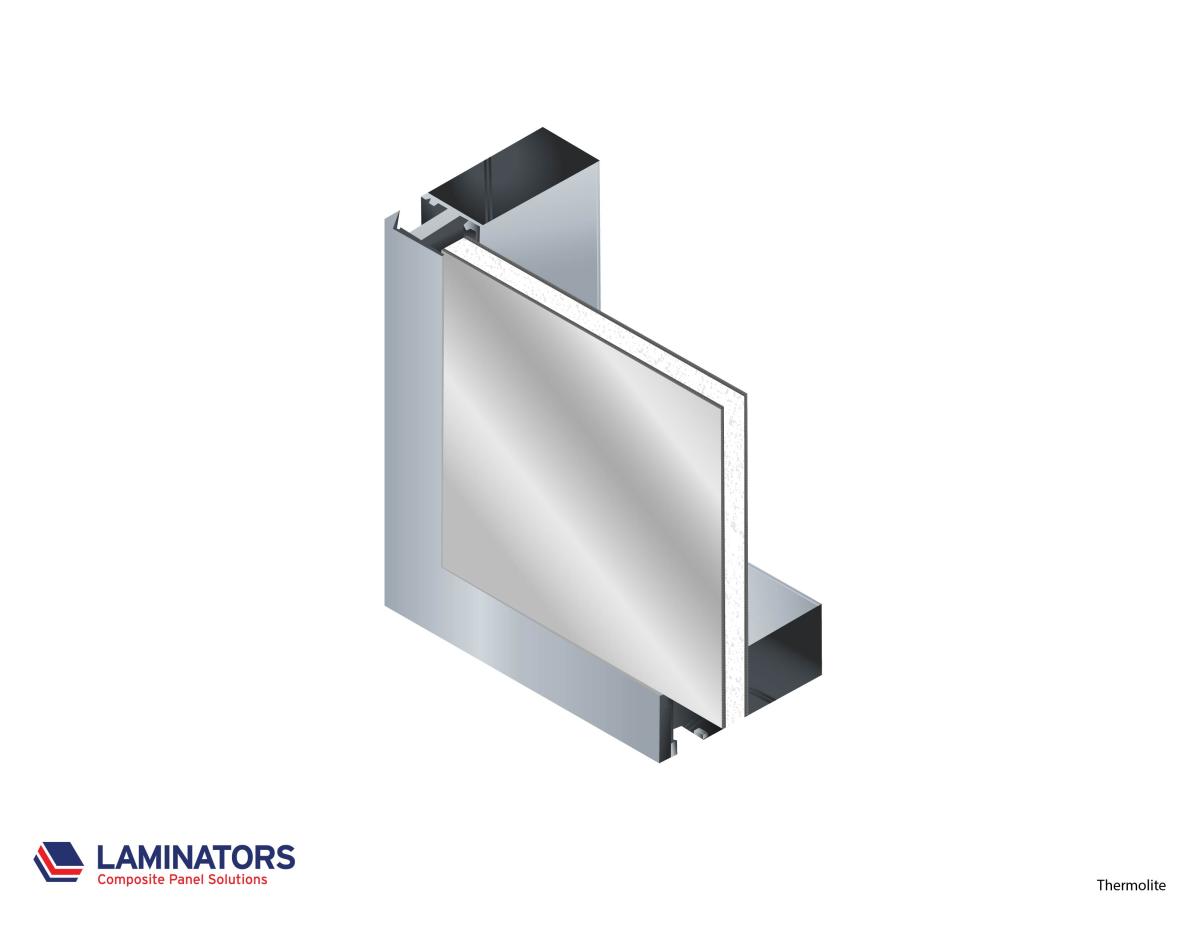

Standard Flat Thermolite Glazing Panel

Fabricated Thermolite Glazing Panel Option

In addition to our standard flat Thermolite panel, Laminators offers fabricated options to provide additional R-Value, new aesthetics and to create hairline joints between panels. Thermolite Glazing Panels are designed to easily fit into any standard or custom glazing system. With building and energy efficiency codes becoming even more stringent, these panels can be a smart solution for your next project.

Available in smooth or stucco-embossed (U-MAX only) finishes in a variety of durable colors.

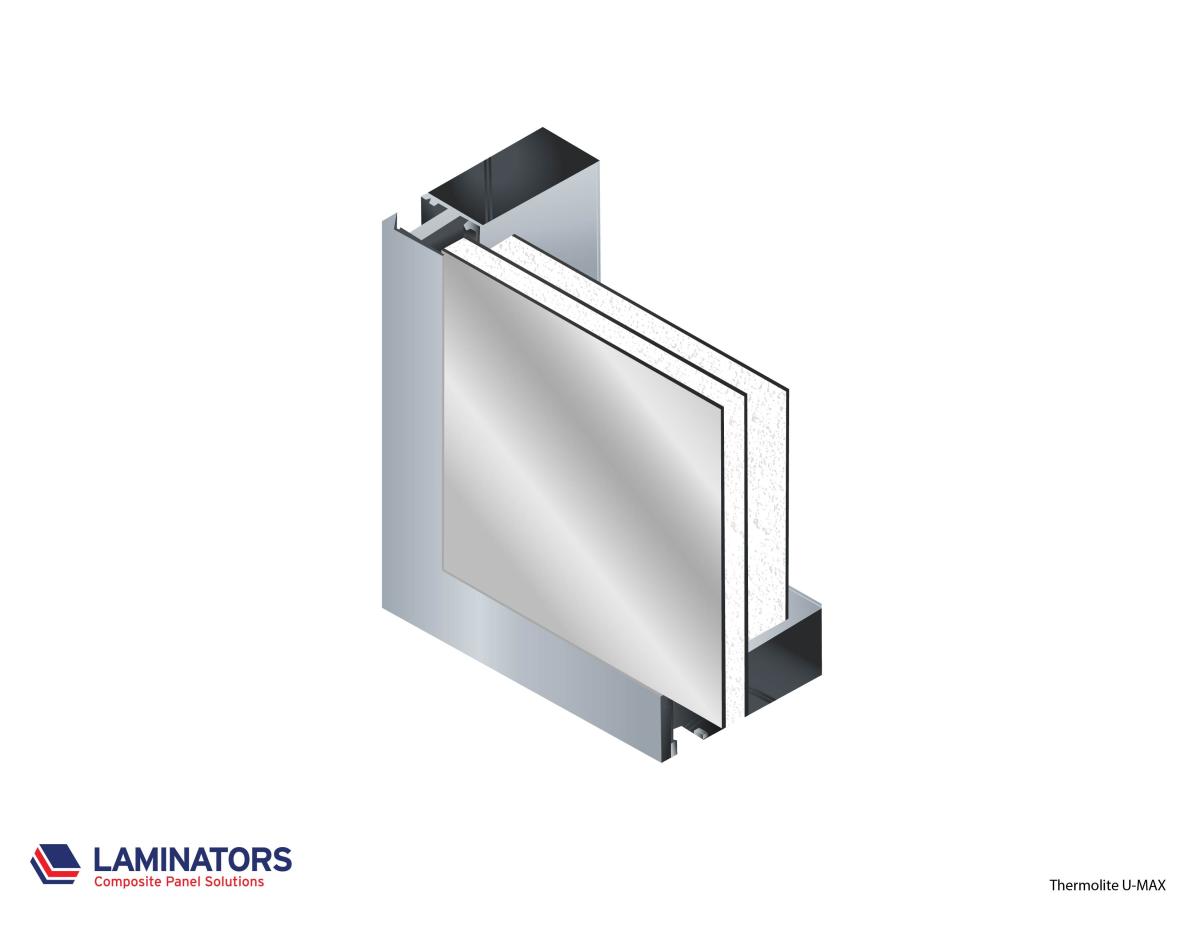

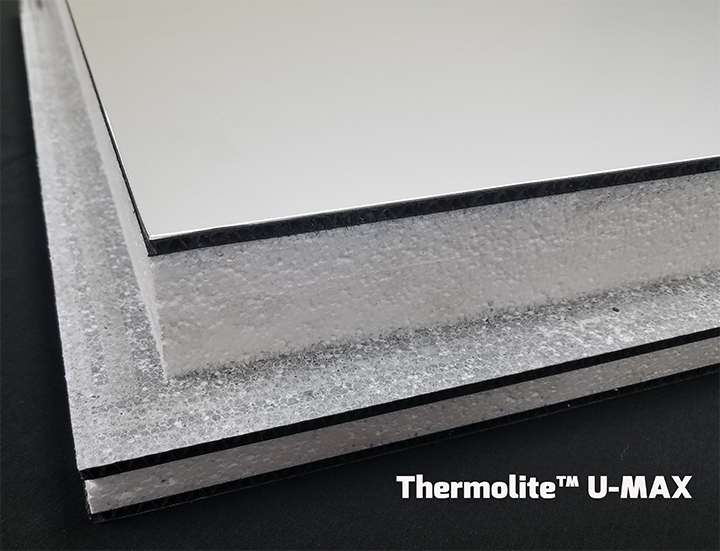

Thermolite™ U-MAX

A 7-ply, rabbet edge panel designed to provide increased insulation on the panel’s interior face.

  • Increases R-Value by 100-200% (over standard 1” infill panels)
  • Up to 3-1/2” Overall Panel Thickness

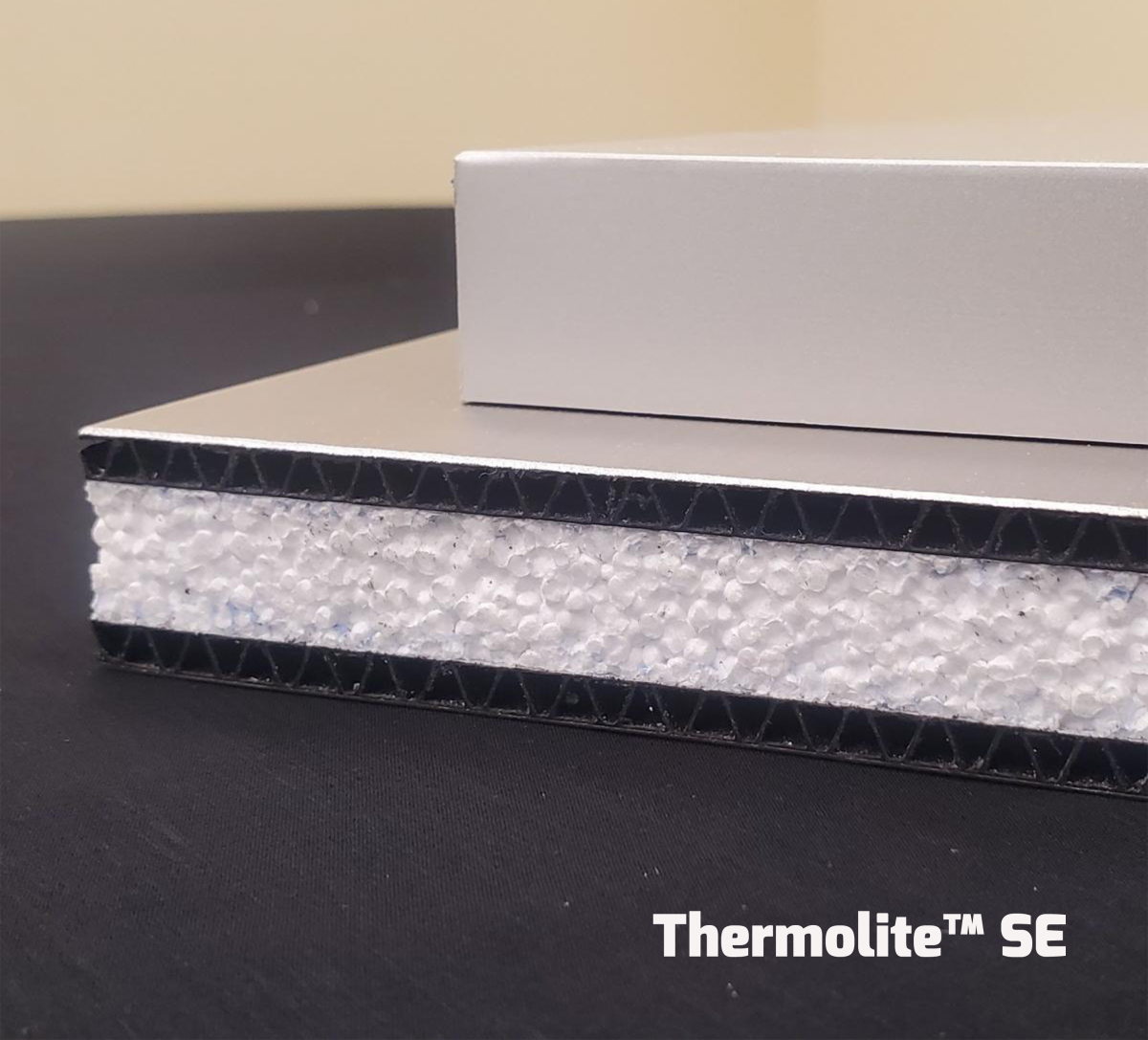

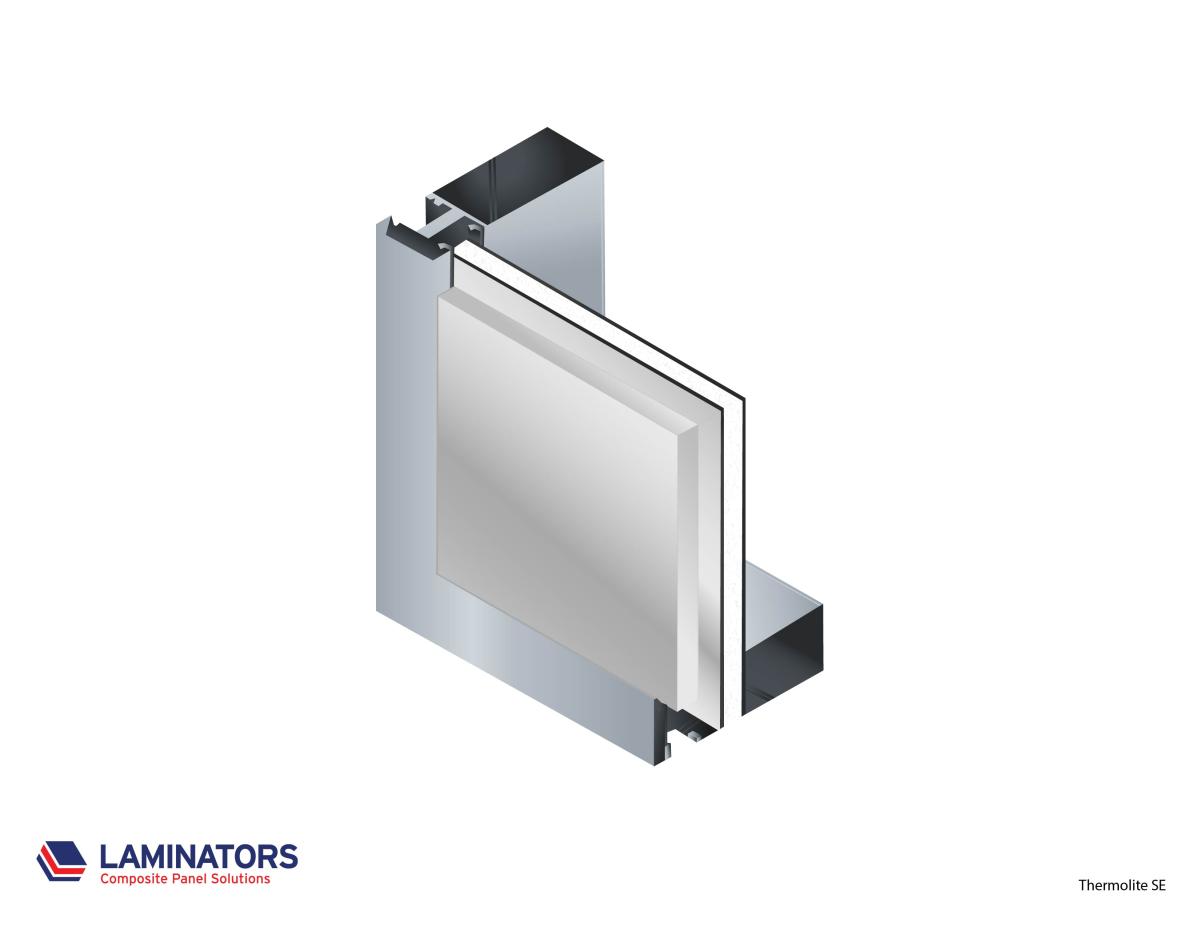

Thermolite™ SE

To provide new aesthetics with the ability to adjust the reveal created between the face of the mullion and the face of the panel.

  • Fits into 1” to 2-1/2” Glazing Pocket
  • Up to 3-1/2” Overall Panel Thickness

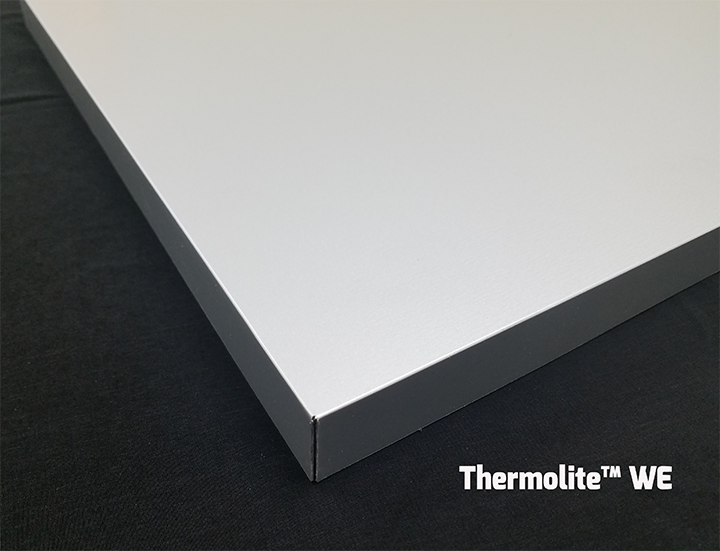

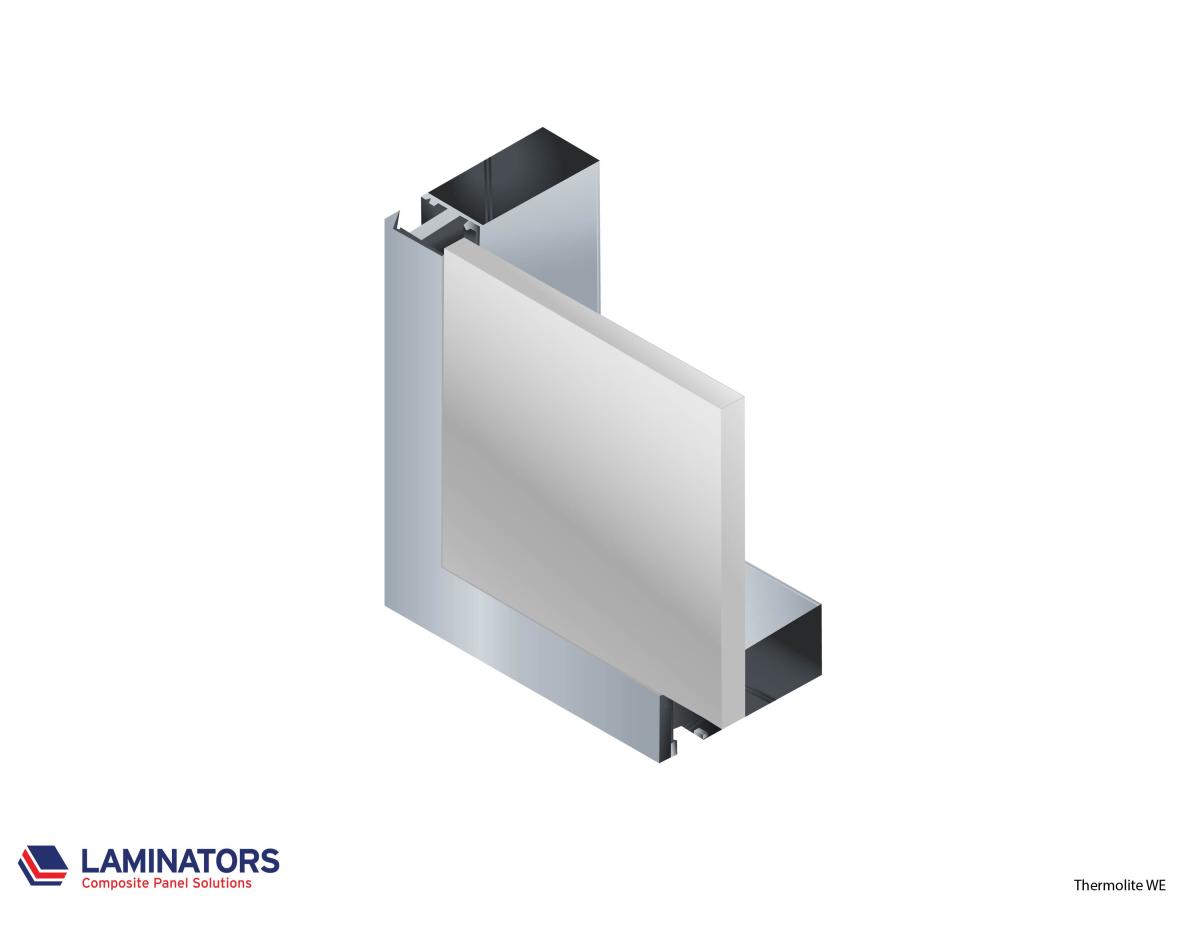

Thermolite™ WE

Edge treatment allowing for metal-to-metal butt-glazed joints to create hairline joints.

  • 1-4 Wrapped/Panned Edges
  • Up to 2-1/2” Panel Thickness

INSTALLATION SYSTEMS

Thermolite panels are lightweight, easy to handle, and quick to install. This is the perfect solution for fitting into 1-inch insulating glass curtain walls and storefront extruded molding systems. Panels can be fabricated on-site using standard carpentry tools or factory-cut to meet your exact specifications.

Vivid colors add new dimension to great architectural design. The right colors create visual interest, enhance beauty, and promote a sense of balance. Laminators Incorporated has stunning color choices to complement your design, covering a range of aesthetics and applications.

Download the Architectural Color Chart.

In addition to the colors shown here, unlimited custom colors are available. Laminators Incorporated can match custom colors to your specifications, making it easy to maintain consistency with corporate identity projects.

NOTE: Lead time may vary based on color, size and finish.

Watch our Custom & Specialty Colors for Aluminum Composite Panels video!

PVDF/Kynar 500® (30-Year Warranty)

Bone White*

Ascot White*

Sandstone*

Almond

Concord Cream

Bright Silver* (Metallic)

Dove Grey*

Champagne* (Metallic)

Rocky Grey

Slate Grey*

Battleship Grey*

Charcoal Grey*

Grey Mica* (Metallic)

Slate Blue

Siam Blue

Regal Blue

Teal

Forest Green

Hartford Green

Patina Green

Hemlock Green

Sierra Tan*

Rawhide

Medium Bronze

Chocolate Brown

Boysenberry

Redwood

Coppertone (Metallic)

Mission Red

Brite Red*

Classic Bronze*

Black*

Sunset Red (SMP Finish)

Denim Blue* (Limited Availability)

Natural Series (20-Year Warranty)

Clear Matte

Clear Matte Brushed

Extra Dark Bronze

Designer Series (30-Year Warranty)

Weathered Wood*

Warm Cherry*

Honey Oak*

Dark Walnut*

Copper Brown*

Grey Slate (Limited Availability)

Spanish Stone (Limited Availability)

Matte Series (30-Year Warranty)

Matte Ash Grey

Matte Anchor Grey

Matte Thunder Grey

Matte Char Brown

Matte Black*

Polyester (10-Year Warranty)

Polar White*

Antique White

Sand Beige

Silver Metallic

Regal Bronze*

Raven Black

Matte Black

Brite Yellow

Candy Apple Red

Sunset Red

Ivy Green

Colors are as close to actual painted metal as possible. Actual color chip samples are available on request.

*Also available in 60″ width

PVDF/Kynar 500: Available in smooth or stucco-embossed finishes.

Polyester: Available in stucco-embossed finish only, except for Polar White and Regal Bronze which are also available in smooth.

Metallic Paint: Color variation is a characteristic of aluminum composite panels with metallic paint finishes. Laminators Incorporated DOES NOT warrant a color match for these panels.

Designer Series: Additional colors and color-matched extrusions are available. Call for details.

Laminators Incorporated reserves the right to make changes in product design or color offerings without prior notice. Kynar 500® is a registered trademark of Arkema Inc.

For product specifications, CAD drawings, technical information and installation guides visit our Downloads page.
