Laminators Incorporated has offered composite panels to the commercial fenestration industry for many years. We are now manufacturing a NEW line of head and seat board panels for bay and bow windows to the residential fenestration market.
![Bay & Bow Window Illustration 0624 01](https://www.laminatorsinc.com/wp-content/uploads/2024/06/Bay-Bow-Window-Illustration-0624-01-1024x637.png)
Our head and seat boards can be easily integrated into the top and bottom of bay and bow window assemblies. The boards are extremely rigid and have a pre-finished oak or birch veneer face that is ready to be stained or painted.
Head and seat boards are available in full-size panels or cut to your exact specifications, reducing your time to fabricate and assemble.
Boards are available in the following sizes and thicknesses:

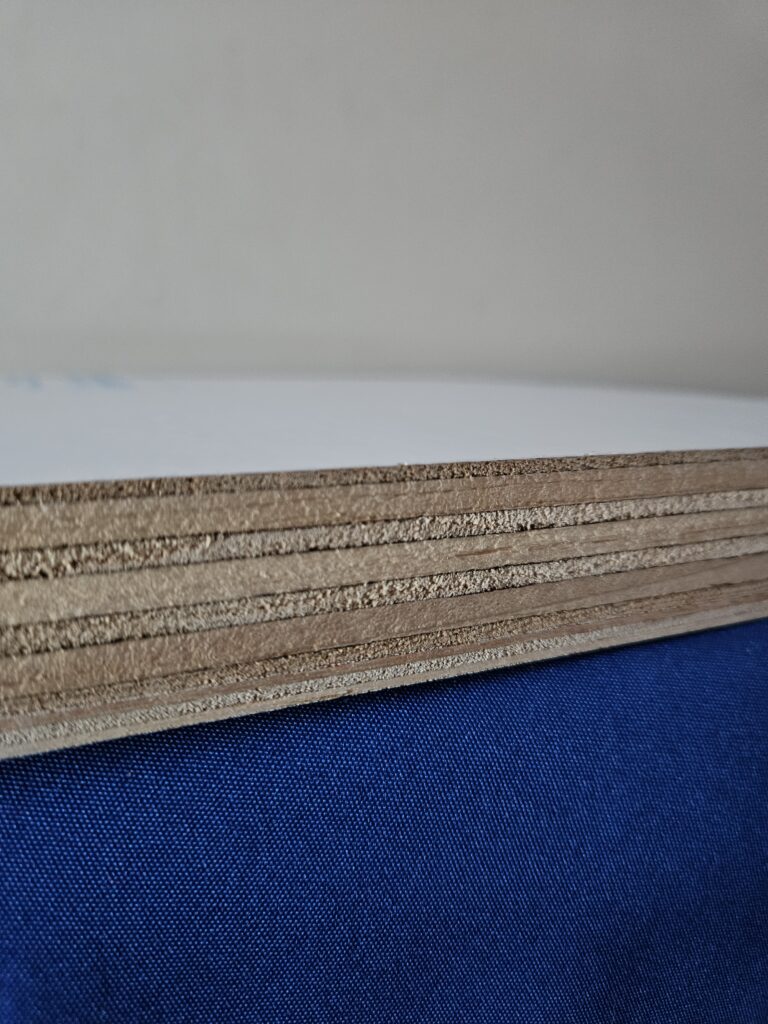

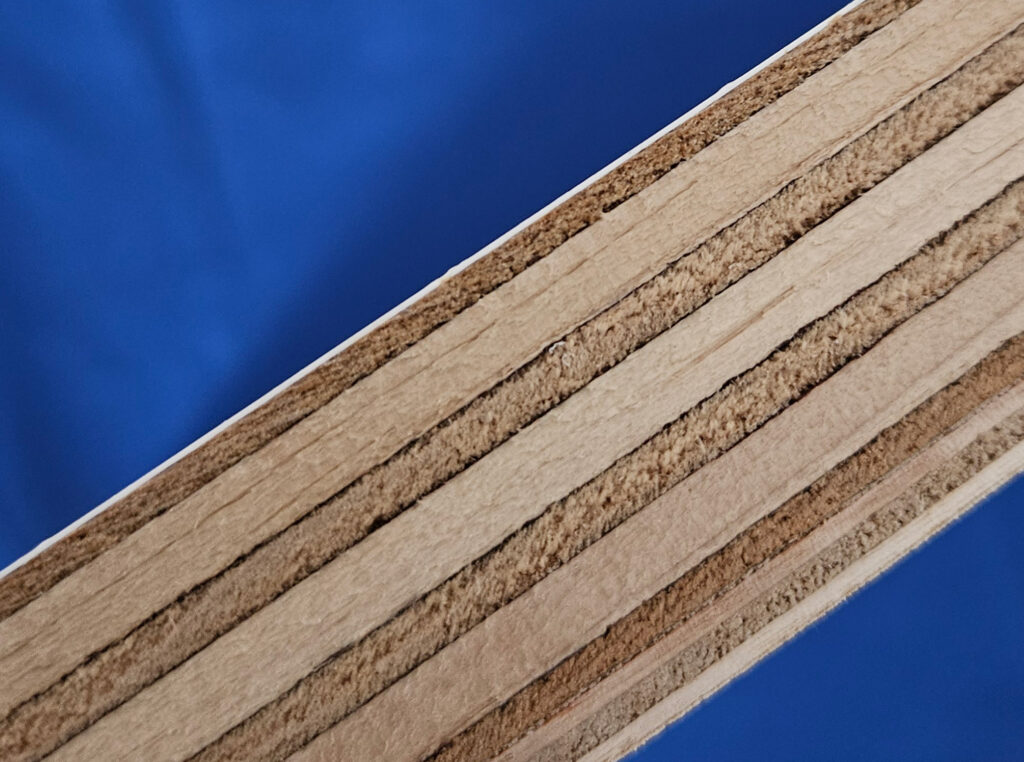

Non-insulated Bay and Bow Window panel
- Face Material: ¼” Oak or birch veneer; A4 grade, rotary-cut plywood veneer laminated to fiberboard
- Core Material: ½”, ¾” or 1” Exterior furniture grade plywood
- Backer Material: 0.20” vinyl backer
- Overall Panel Thicknesses: ¾”, 1”, 1 ¼”
- Size: 4’ x 8’, 4’ x 10’, 4’ x 12’, or cut-to-size

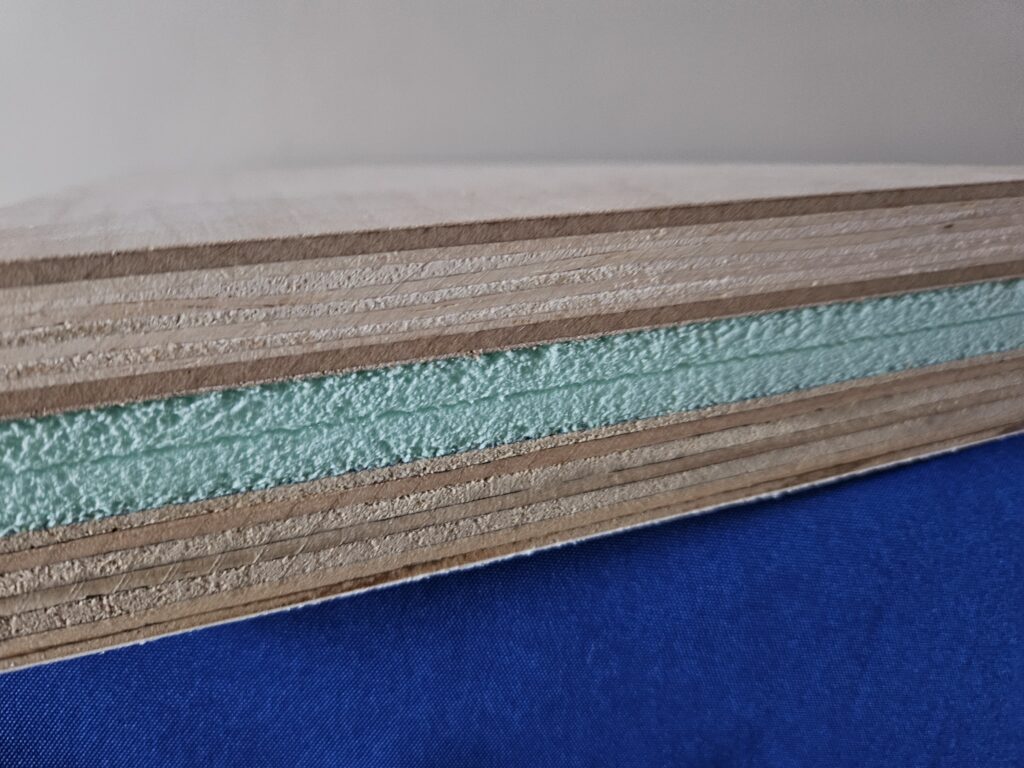

Insulated Bay and Bow Window panel
- Face Material: ¼” Oak or birch veneer; A4 grade, rotary-cut plywood veneer laminated to fiberboard
- Stabilizer Material: ½” Exterior furniture grade plywood
- Foam Core: ½” ISO, EPS or XPS
- Stabilizer Material: ½” Exterior furniture grade plywood
- Backer Material: 0.20” vinyl backer
- Overall Panel Thicknesses: 1 ¾”
- Size: 4’ x 8’, 4’ x 10’, 4’ x 12’, or cut-to-size
